RD-017 22 mm Plastic Spout Cap
- Food Grade Material | Comply with GB4806.7 & EU LFGB
- Retort Resistant | High Temperature up to 121 °C
- Self-Developed Patent Molds for Dual Anti-Theft spout cap
Applications & selection
Suitable for pharmaceutical pouches and water pouches.
Before ordering, confirm the selected model with your pouch film, contents, filling process and sealing equipment. Request samples to check fit and performance under your actual operating conditions.
Specifications
Item No: RD-017
Inner diameter: φ22 mm
Spout Size: 40 × 38.25 × 32.4 mm
Top Cap Size: φ25.6 × 20.68 mm
Screw Cap Size: φ30.7 × 38.05 mm
Pull Cap Size: φ21 × 14.5 mm
Material: PE+PP
Grade: Food grade
Ordering & customization
White is the standard color. Custom Pantone colors are mixed for your order; the usual MOQ for a custom color is 100,000 pieces, with exceptions discussed case by case.
For a new mold, we quote after the 3D drawing is confirmed. A 3D-printed sample can be made after design approval, and mold production is typically around 60 days.

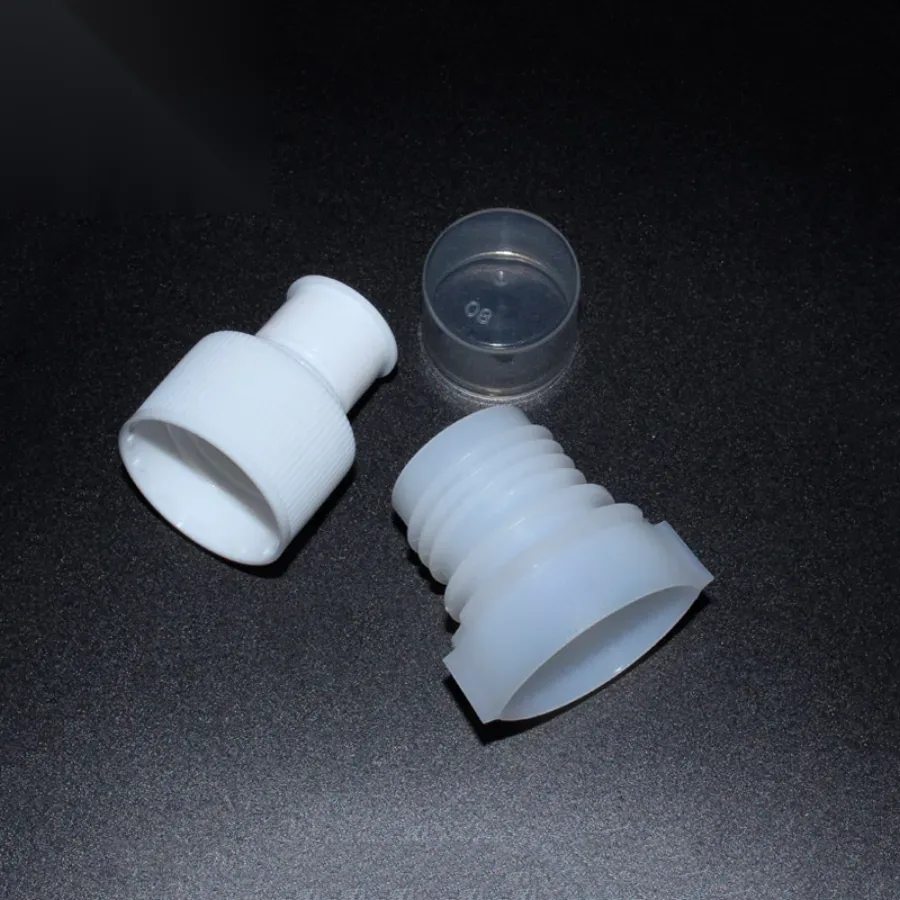

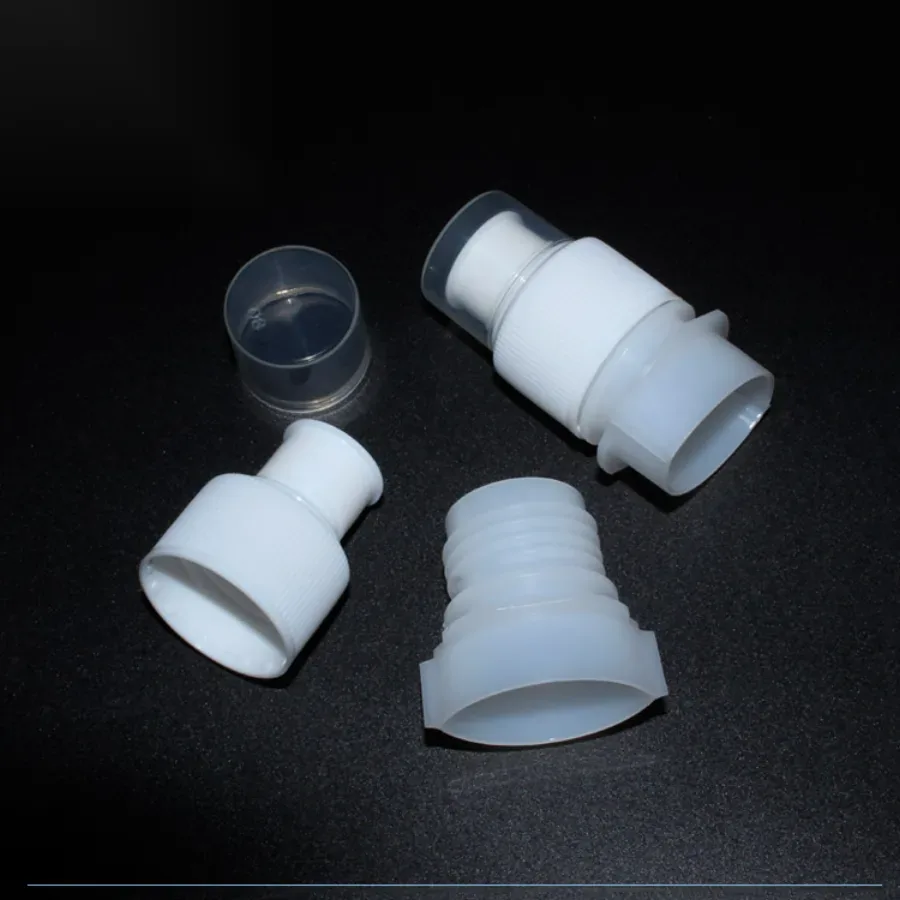

RD-017 in detail

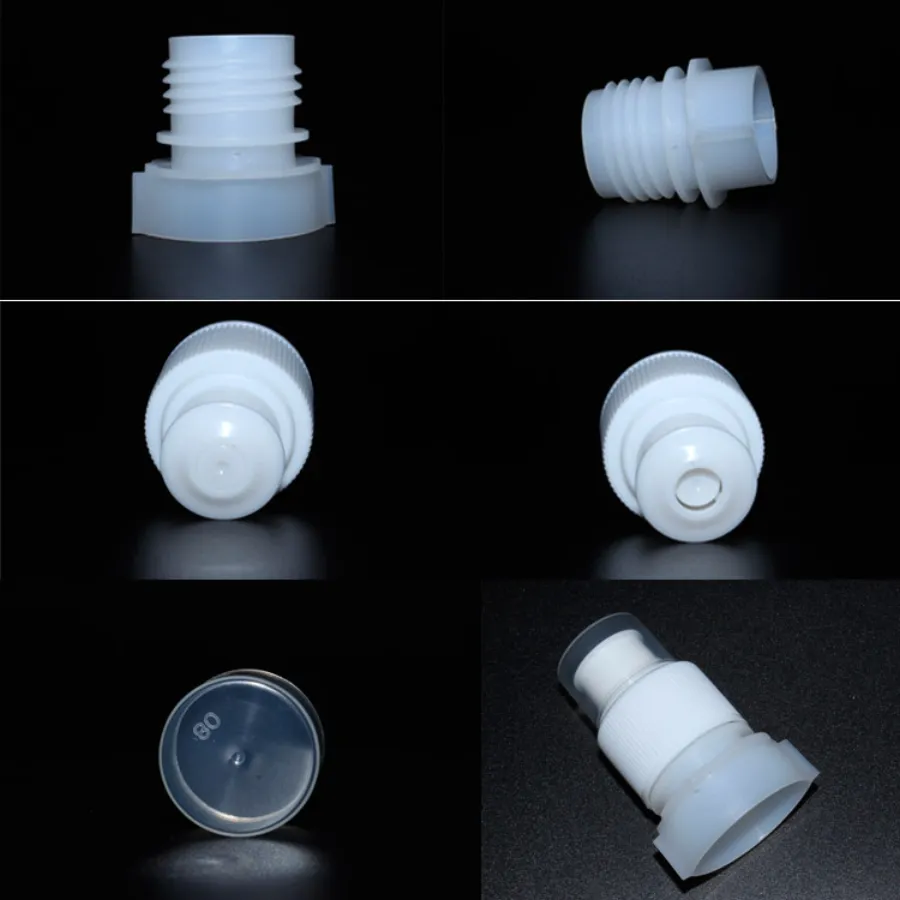

Full-size views — angles, close-ups of the thread and seat, and the cap on a pouch.
More 22mm spout caps
Same 22mm bore — other cap styles, colors and spout heights.
