RD-025 14 mm Plastic Spout Cap
- Multiple colors available; custom colors and mold development supported.
- with ISO9001, HACCP, FDA and EU 1935/2004 food grade (TUV SUD) certificate.
Applications & selection
Suitable for pharmaceutical stand-up pouches.
Before ordering, confirm the selected model with your pouch film, contents, filling process and sealing equipment. Request samples to check fit and performance under your actual operating conditions.
Specifications
Item No: RD-025
Inner diameter: φ14 mm
Spout Size: 37 × 21.5 × 36.39 mm
Twist Cap Size: φ22.99 × 52.55 mm
Top Cap Size: 15.9 × 15 × 32.5 mm
Material: PP+PE
Grade: Food grade
Ordering & customization
White is the standard color. Custom Pantone colors are mixed for your order; the usual MOQ for a custom color is 100,000 pieces, with exceptions discussed case by case.
For a new mold, we quote after the 3D drawing is confirmed. A 3D-printed sample can be made after design approval, and mold production is typically around 60 days.
RD-025 in detail

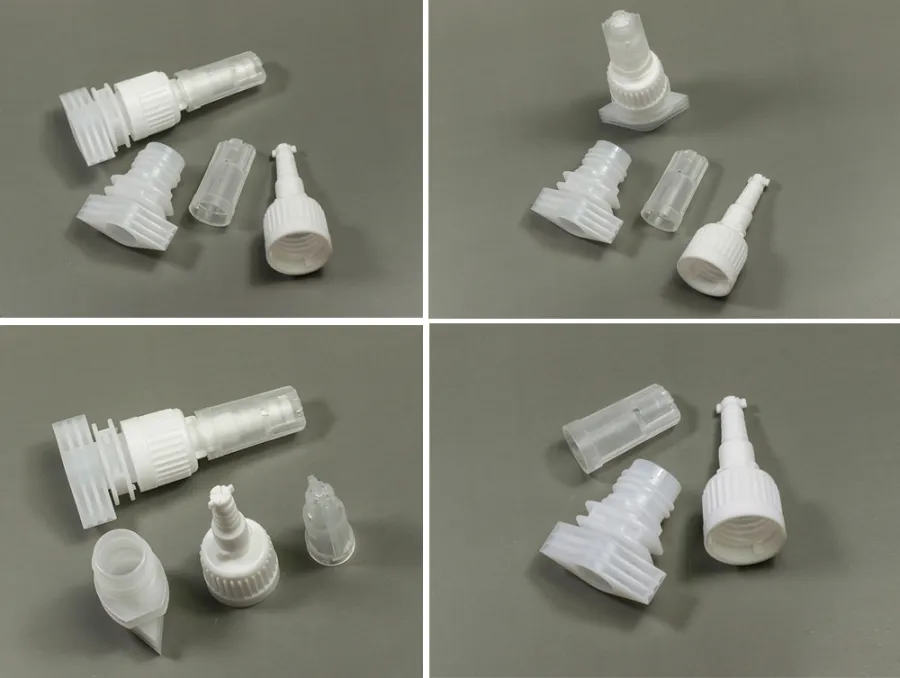

Full-size views — angles, close-ups of the thread and seat, and the cap on a pouch.
More 14mm spout caps
Same 14mm bore — other cap styles, colors and spout heights.
