RD-047 21.5 mm Plastic Spout Cap
- with ISO9001, HACCP, FDA and EU 1935/2004 food grade (TUV SUD) certificate.
- 21.5 mm spout cap
Applications & selection
Suitable for orange juice pouches.
Before ordering, confirm the selected model with your pouch film, contents, filling process and sealing equipment. Request samples to check fit and performance under your actual operating conditions.
Specifications
Item No: RD-047
Inner diameter: φ21.5 mm
Spout Size: 39.7 × 60.7 × 32 mm
Cap Size: φ30.5 × 17.7 mm
Material: PE
Grade: Food grade
Ordering & customization
White is the standard color. Custom Pantone colors are mixed for your order; the usual MOQ for a custom color is 100,000 pieces, with exceptions discussed case by case.
For a new mold, we quote after the 3D drawing is confirmed. A 3D-printed sample can be made after design approval, and mold production is typically around 60 days.

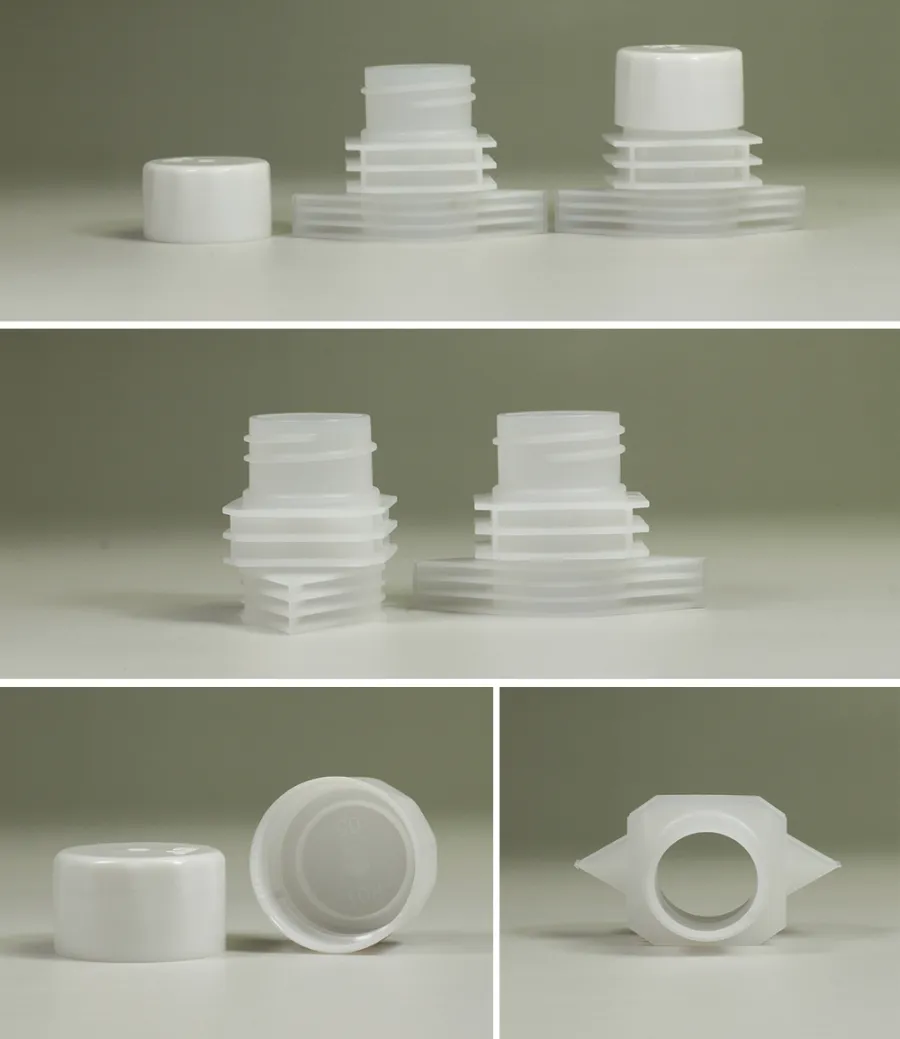

RD-047 in detail
Full-size views — angles, close-ups of the thread and seat, and the cap on a pouch.
More 21.5mm spout caps
Same 21.5mm bore — other cap styles, colors and spout heights.
