RD-050 20 mm Plastic Spout Cap
- Food-grade material
- with ISO9001, HACCP, FDA and EU 1935/2004 food grade (TUV SUD) certificate.
- OEM and ODM services available.
Applications & selection
Suitable for stand-up pouches containing salt, sugar or laundry detergent.
Before ordering, confirm the selected model with your pouch film, contents, filling process and sealing equipment. Request samples to check fit and performance under your actual operating conditions.
Specifications
Item No: RD-050

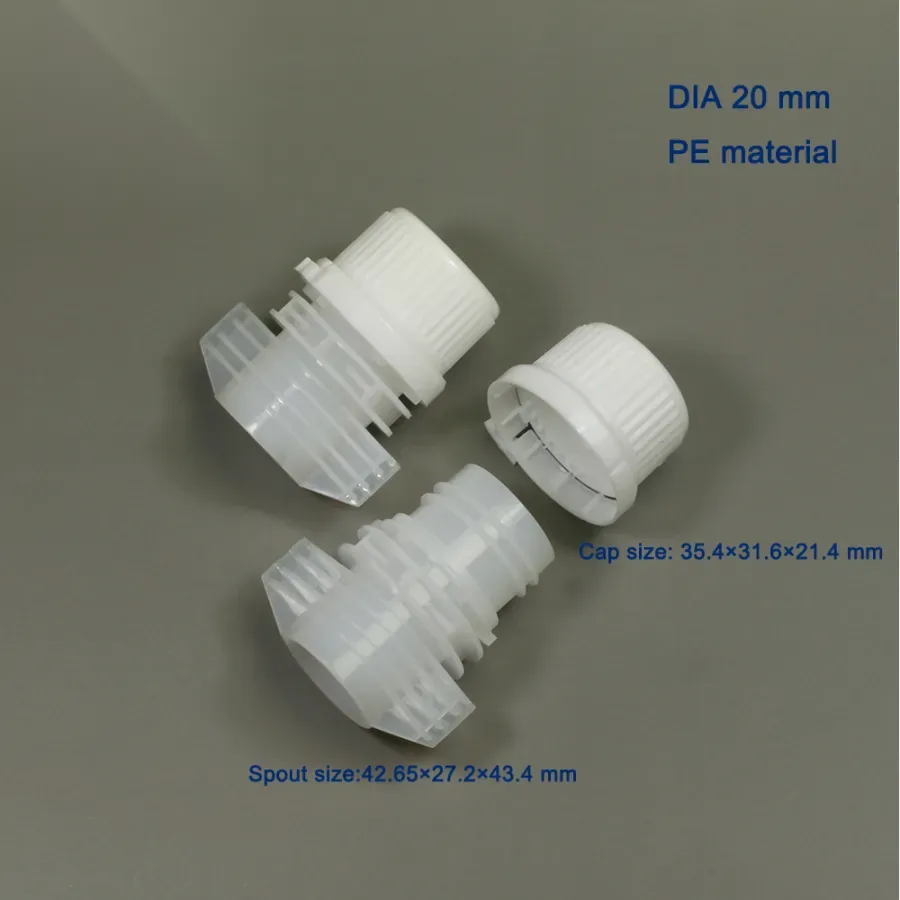

Inner diameter: φ20 mm
Spout Size: 42.65 × 27.2 × 43.4 mm
Cap Size: 35.4 × 31.6 × 21.4 mm
Ordering & customization
White is the standard color. Custom Pantone colors are mixed for your order; the usual MOQ for a custom color is 100,000 pieces, with exceptions discussed case by case.
For a new mold, we quote after the 3D drawing is confirmed. A 3D-printed sample can be made after design approval, and mold production is typically around 60 days.
RD-050 in detail

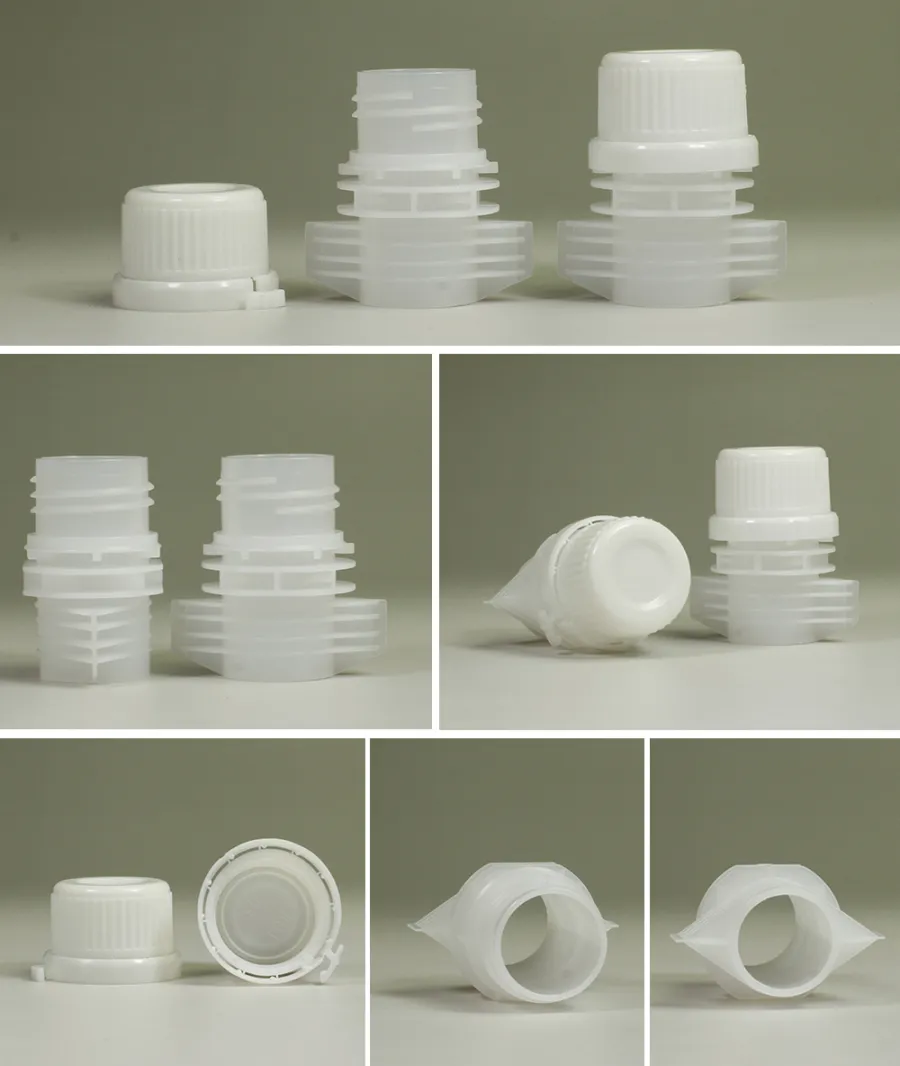

Full-size views — angles, close-ups of the thread and seat, and the cap on a pouch.
