RD-106 8.2 mm Plastic Spout Cap
- 8.2 mm spout cap
- Food-grade material
- with ISO9001, HACCP, FDA and EU 1935/2004 food grade (TUV SUD) certificate.
Applications & selection
Suitable for condiments such as tomato sauce, broad bean paste and syrup.
Before ordering, confirm the selected model with your pouch film, contents, filling process and sealing equipment. Request samples to check fit and performance under your actual operating conditions.
Specifications
Item No: RD-106
Inner diameter: φ8.2 mm
Spout Size: 28.2 × 20.8 × 10.4 mm
Cap Size: φ16.6 × 15.7 mm
Material: PE
Grade: Food grade
Ordering & customization
White is the standard color. Custom Pantone colors are mixed for your order; the usual MOQ for a custom color is 100,000 pieces, with exceptions discussed case by case.
For a new mold, we quote after the 3D drawing is confirmed. A 3D-printed sample can be made after design approval, and mold production is typically around 60 days.
RD-106 in detail

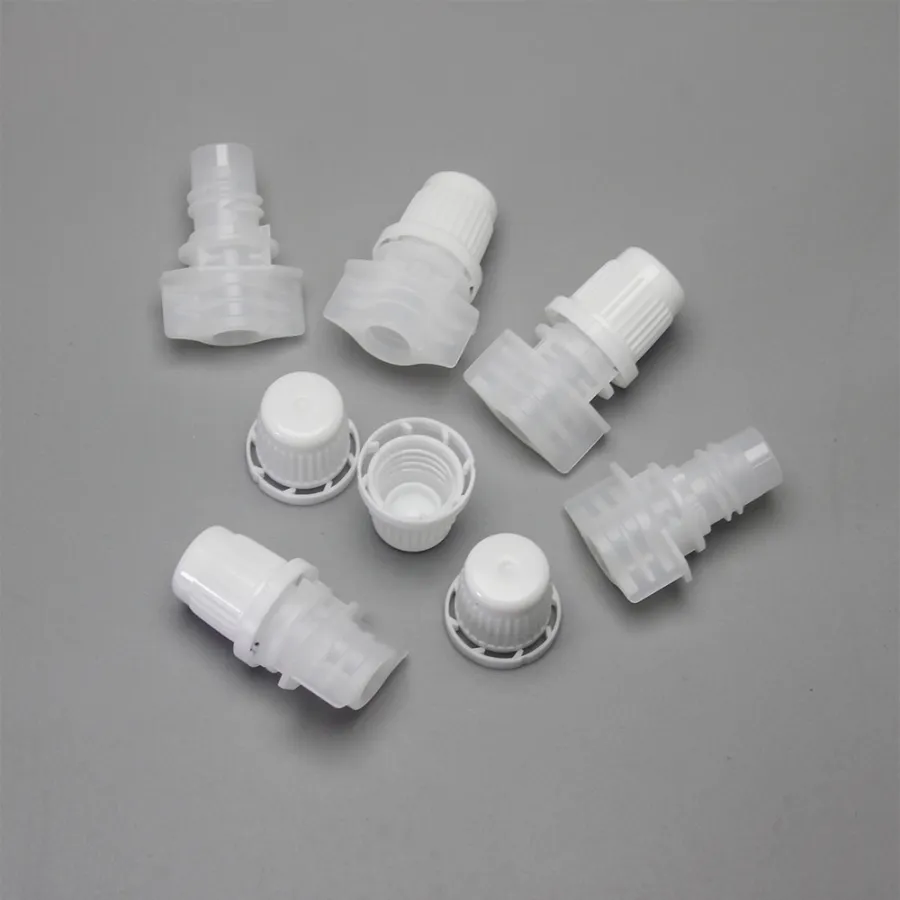

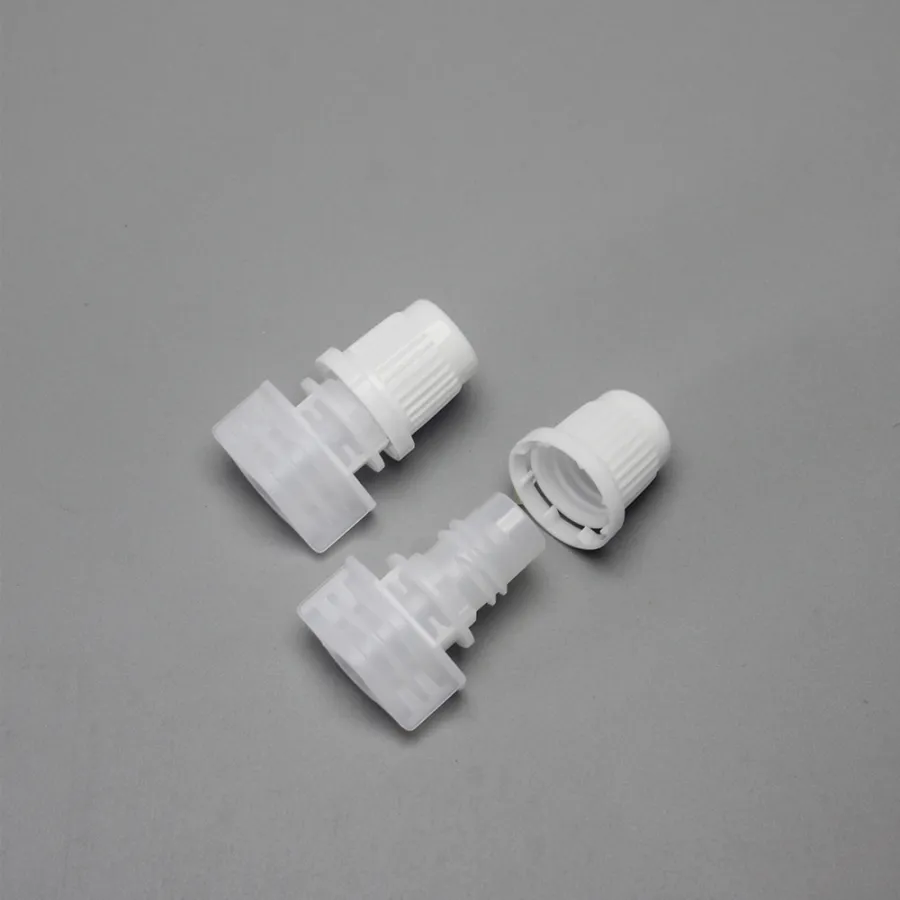

Full-size views — angles, close-ups of the thread and seat, and the cap on a pouch.
More 8.2mm spout caps
Same 8.2mm bore — other cap styles, colors and spout heights.
