RD-177 9.5 mm Plastic Spout Cap
- Screw cap caliber: 9.6 mm. Thin dip tube outlet inner diameter: 3.9 mm. Moderate small flow passage to control outflow speed of thick cosmetic liquid, avoid excessive extrusion of lip gloss, mascara and eyeliner.
- Cosmetic Grade Virgin PP Material: low impurity content, great compatibility with most makeup formulations. Stable performance and hardly trigger chemical reaction with cosmetic liquid.
- Customizable Long Slim Dip Tube: extended thin tube reaches the bottom of pouches, effectively reduce leftover expensive cosmetic raw materials. Tube length can be adjusted according to pouch height.
- Excellent Anti-leak Sealing Performance: precision matched threads maintain stable tightening torque. No leakage during long-distance transportation, ideal for portable cosmetic refill packaging.
- Customization Support: custom Pantone colors, embossed brand logos and adjustable tube length for OEM orders.
- Full-automatic assembly + AI visual inspection to remove burrs, cracks and molding defects. Batch sampling inspection including air tightness test and torque test to ensure stable dimensional consistency among batches.
Applications & selection
Lip gloss, liquid eyeliner, mascara, eyebrow dye, lip glaze and other liquid makeup stand-up refill pouches.
Before ordering, confirm the selected model with your pouch film, contents, filling process and sealing equipment. Request samples to check fit and performance under your actual operating conditions.
Specifications
Item No: RD-177
Inner diameter: φ9.5 mm
Spout Size: 29.9 × 21.1 × 18.1 mm
Cap with pipe Size: φ17.7 × 69.2 mm
Material: PP
Grade: Food grade
Ordering & customization
White is the standard color. Custom Pantone colors are mixed for your order; the usual MOQ for a custom color is 100,000 pieces, with exceptions discussed case by case.
For a new mold, we quote after the 3D drawing is confirmed. A 3D-printed sample can be made after design approval, and mold production is typically around 60 days.
RD-177 in detail

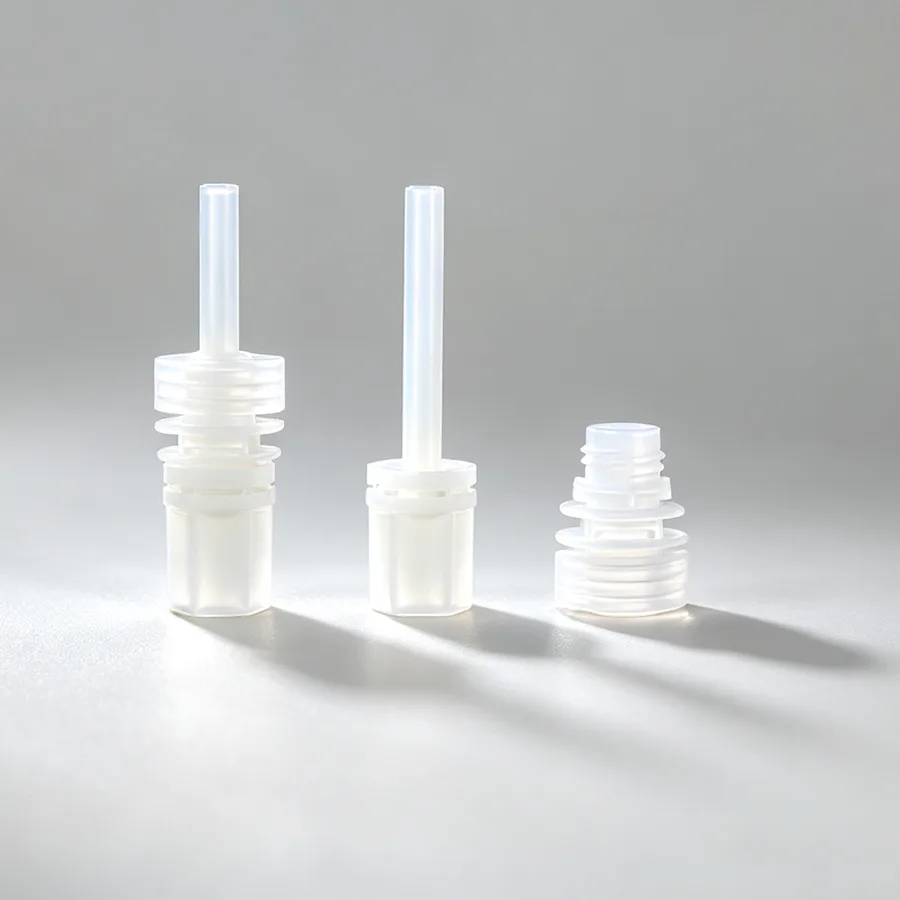

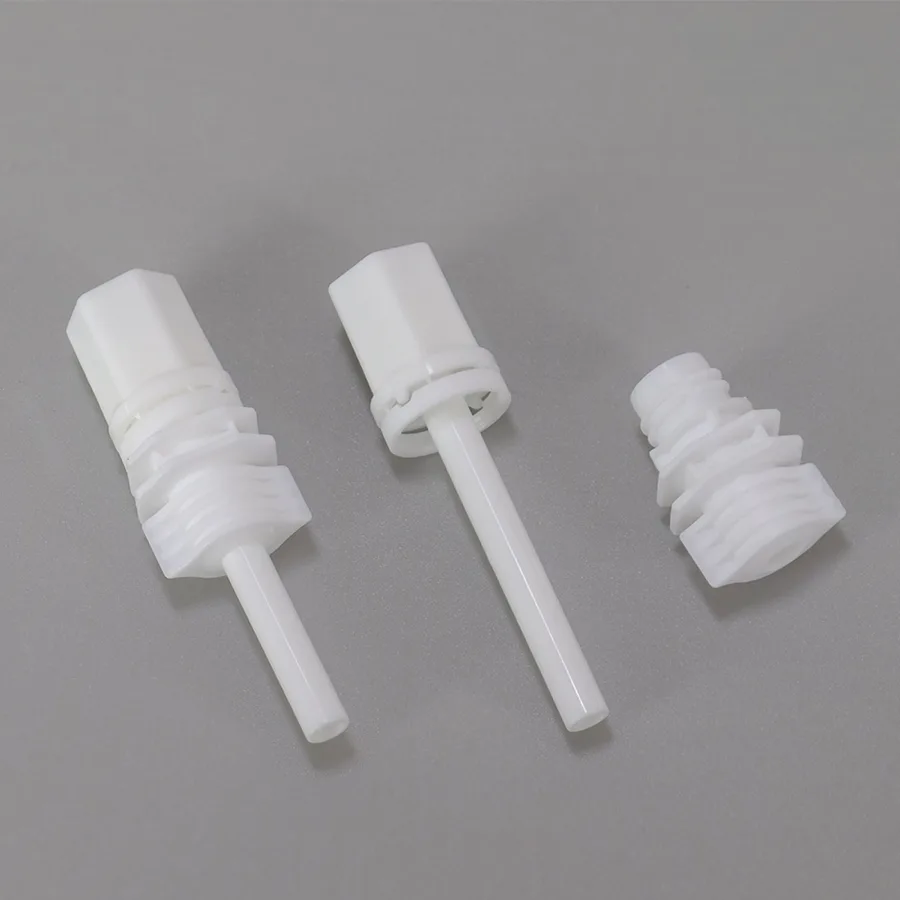

Full-size views — angles, close-ups of the thread and seat, and the cap on a pouch.
